Powerful 800G and 1.6T testing
EXFO’s BA-4000-L2 is a combined layer 1 BER tester and Ethernet (L2) traffic analyzer for 800G DR4/FR4/LR4 and 1.6T optical engines. It addresses the comprehensive testing requirements of 1.6T optical engines (100G electrical, 200G optical per lane), 800G transceivers (200G per lane), as well as DCO transceivers. The solution includes FEC testing (including FEC statistics), burst error detection and BER calculated from host to end for the industry’s most reliable measure of error when testing optical transceivers, including LPO devices.

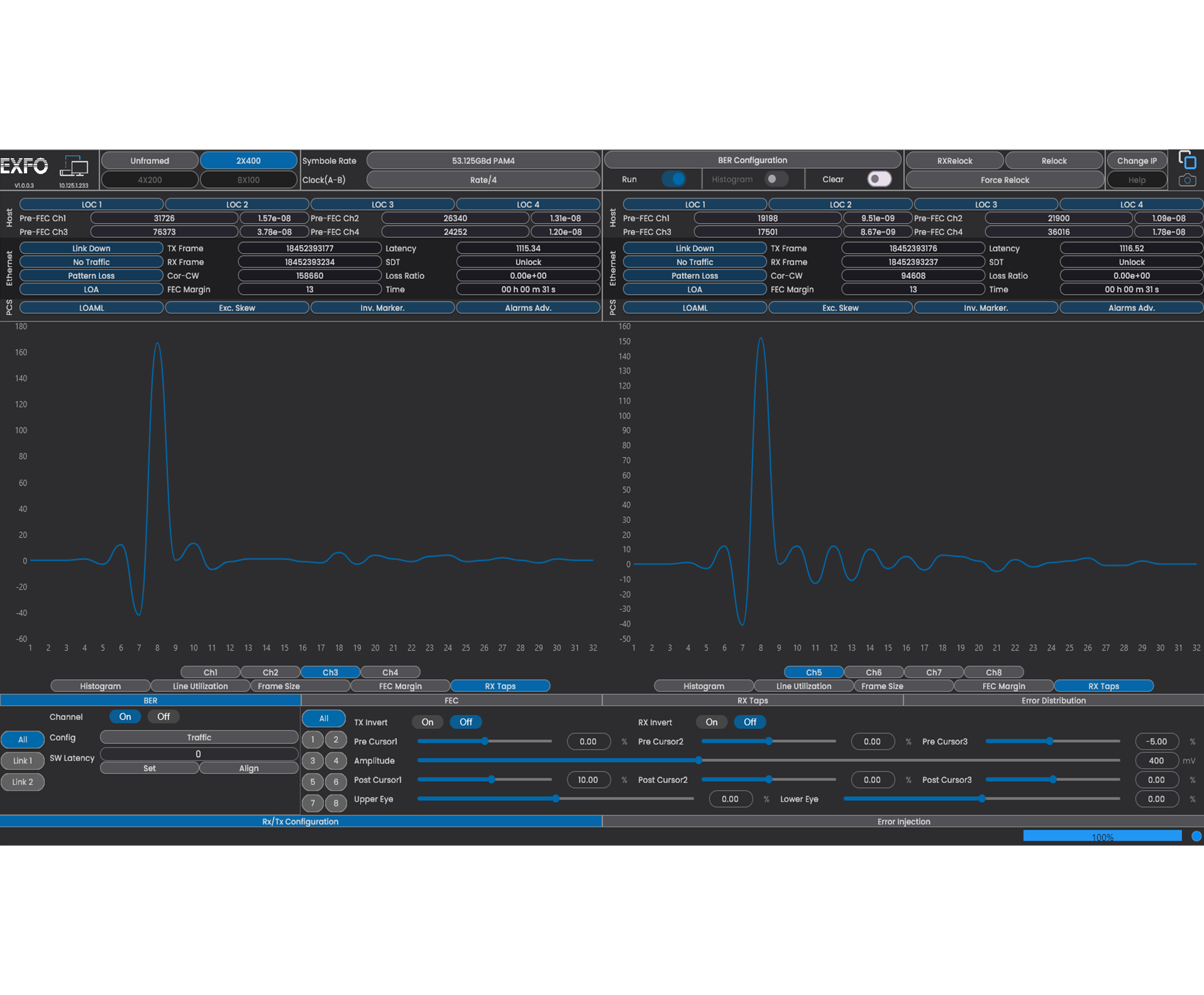

![Screenshot_BA-4080-GUI_Traffic.png](/contentassets/75c6470f86b24091ab8b3e03a3a77251/screenshot_ba-4080-gui_traffic.png?rxy=0.5,0.5&rmode=crop)

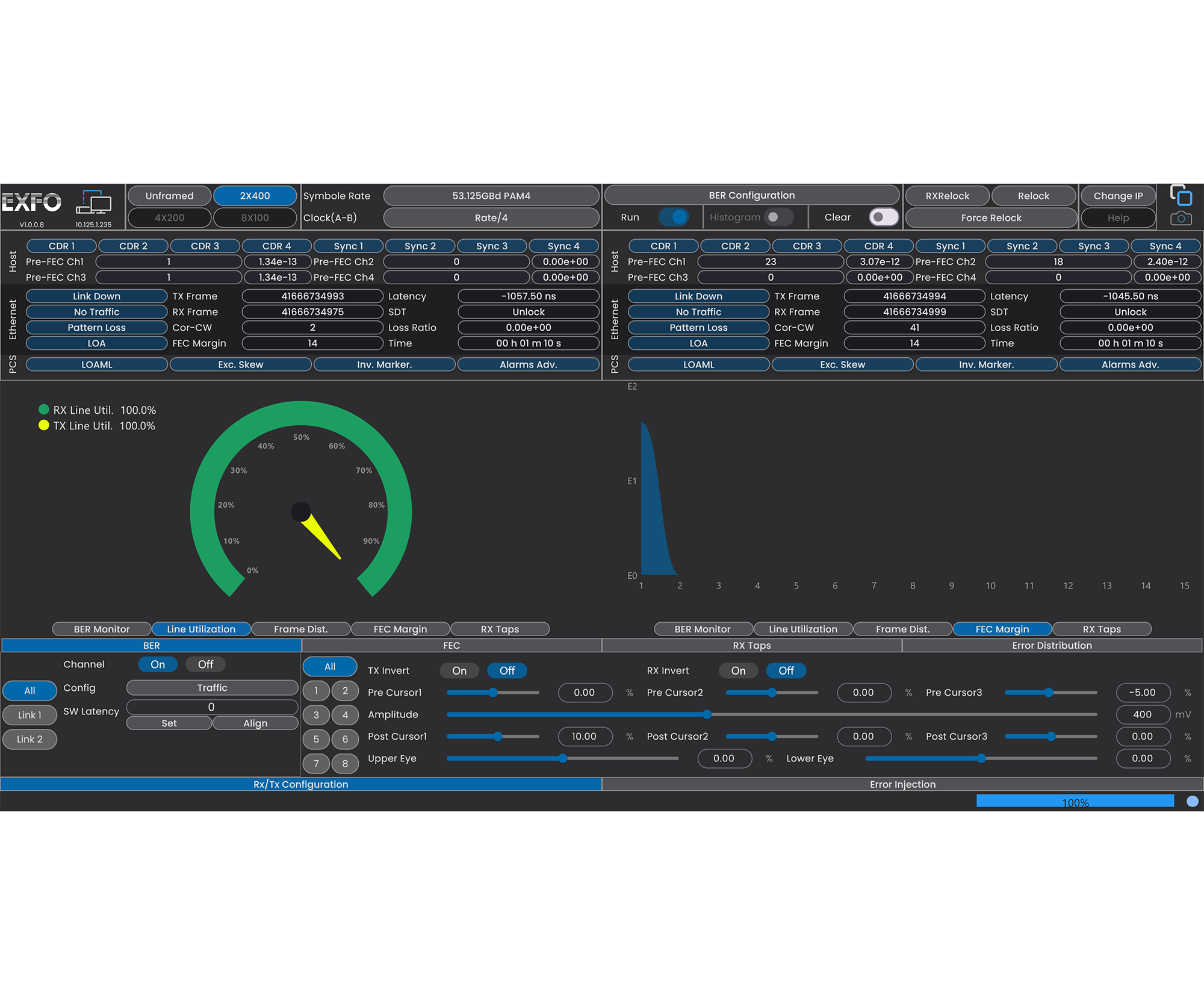

![Screenshot_BA-4000-L2_Line-Util-FEC.png](/contentassets/75c6470f86b24091ab8b3e03a3a77251/screenshot_ba-4000-l2_line-util-fec.png?rxy=0.5,0.5&rmode=crop)

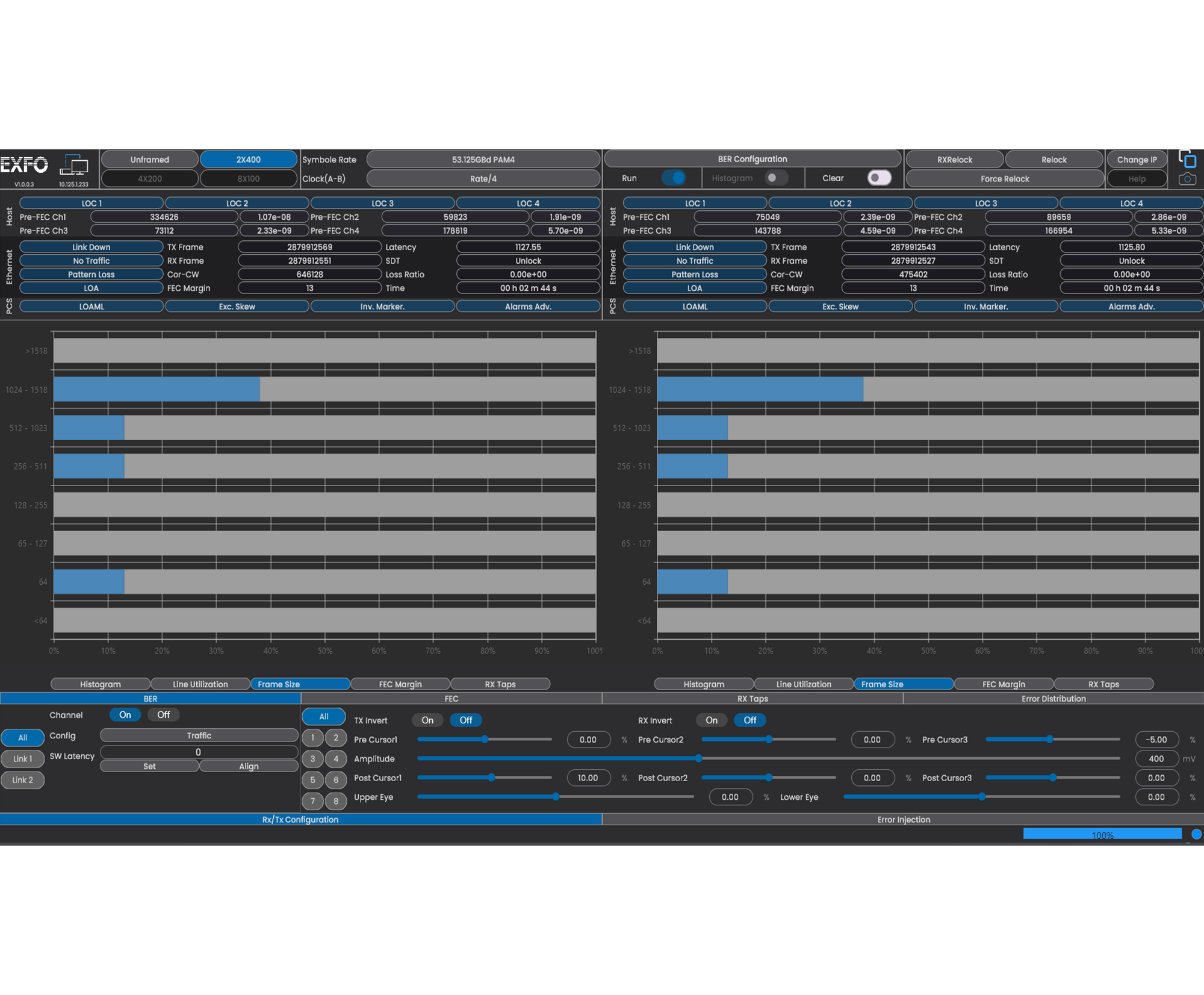

![Screenshot_BA-4080.png](/contentassets/75c6470f86b24091ab8b3e03a3a77251/screenshot_ba-4080.png?rxy=0.5,0.5&rmode=crop)
![](/de/mesh/mesh.png)
Superior hardware design
Native electrical interface
Excellent signal quality
Clean eye diagram
Low error floor
Key features
Superior hardware design: native electrical interface, excellent signal quality, clean eye diagram and low error floor
Layer 2 framed testing: delivers a real system view for L1 device under test (DUT) from L2 framed traffic
Layer 1 BERT: excellent signal quality alongside layer 2 testing

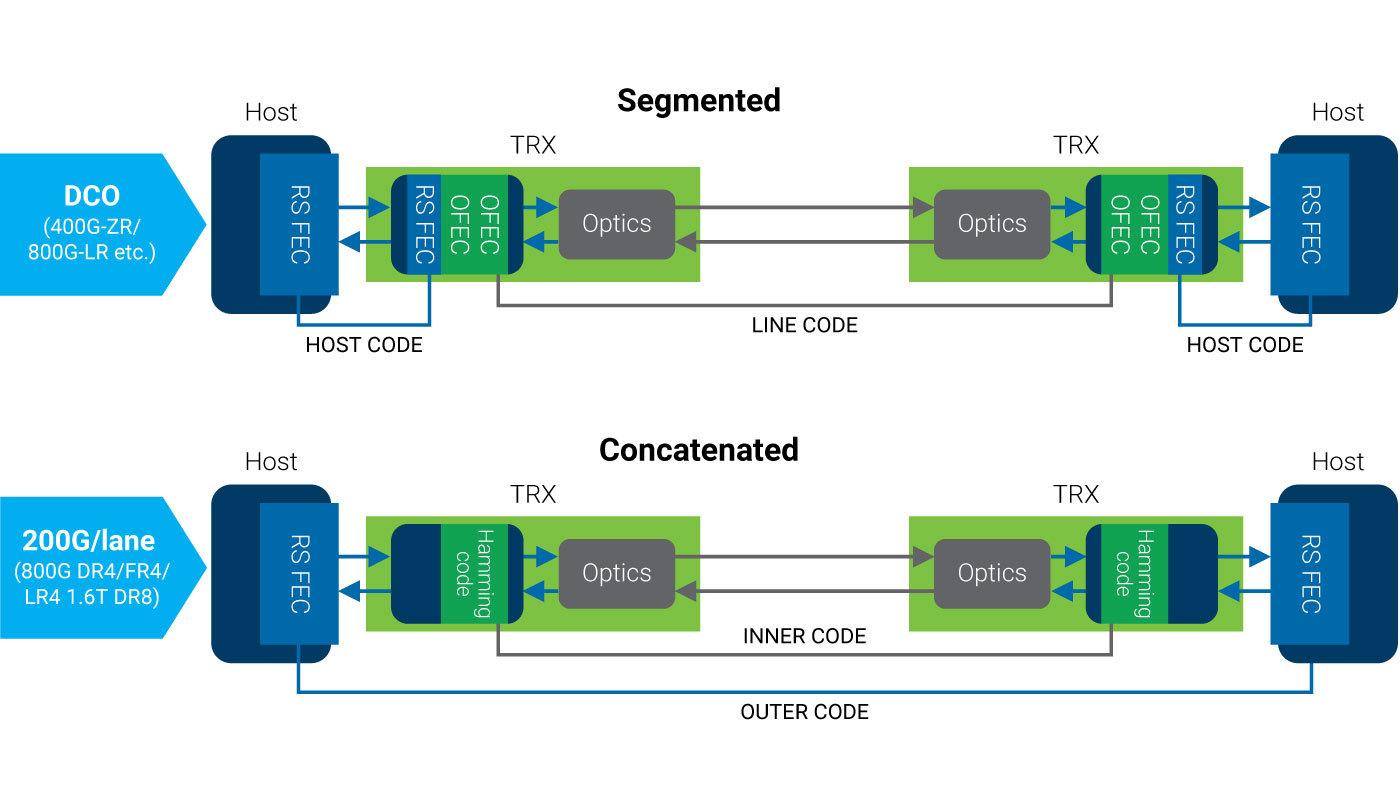

Real-time FEC analysis: testing of pre/post FEC BER, symbol error distribution and FEC margin
Powerful equalizer and channel simulator: powerful equalizer includes CTLE, 32 taps FFE and DFE. Ideal for LPO transceivers
Layer 2 testing: tests 800G DR4/FR4/LR4/ZR with framed L2 traffic
Link training: provides adjustable TX and FFE weight to enable link training
Detection of burst errors: looks beyond the average level of bit error rate
Breakout cable testing: supports breakout cables testing scenarios including 8x 100G and 2x 400G
