FTBx-720D - LAN/WAN access OTDR

Purpose-built construction OTDRs for everyday field testing in any access network. With an intelligent Optical Link Mapper (iOLM) application for both singlemode and multimode testing, this is the most automated and intelligent troubleshooting tool for FTTA, LAN and data centers.

Swap-Out connector

The new line of FTBx 700D OTDR modules comes with a Swap-Out connector which can easily be changed, as and when needed, without having to send the test module to a service center. This ensures optimal performance over time without undue maintenance costs and downtime. The OTDR's optical connector health can be checked with an onboard diagnostic tool to replace the connector only when necessary.

Your calibration date remains valid, even after swapping the connector. No need to calibrate your unit sooner than planned.

Did you know?

Was your OTDR connector damaged when connecting a UPC cable to the APC port on your device? This no longer needs to cause downtime by sending the device back for repair. Thanks to EXFO’s Swap-Out connectors, you can now check connector health instantly and replace your connector within seconds if needed–directly from the field! See it for yourself.

Key features

Dynamic range of up to 36 dB in singlemode and 29 dB in multimode

Quad singlemode/multimode version

FTTx in-service testing at 1650 nm with optional in-line GPON/XGS-PON power meter

Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost and downtime

iOLM-ready: one-touch multiple acquisitions, with clear go/no-go results presented in a straightforward visual format

3-year warranty

OTDR, light source and power checker through single port to optimize the fiber handling process.

Applications

Access network construction and troubleshooting

FTTx/PON testing through splitters (up to 1×32)

FTTx service activation: GPON, EPON, XGS-PON, 10GE EPON

Central office link certification

Data center and private networks (Tier-2 certification)

LAN/WAN characterization

Fronthaul/backhaul (FTTA, FTTT, RRH, DAS and small cells)

Description

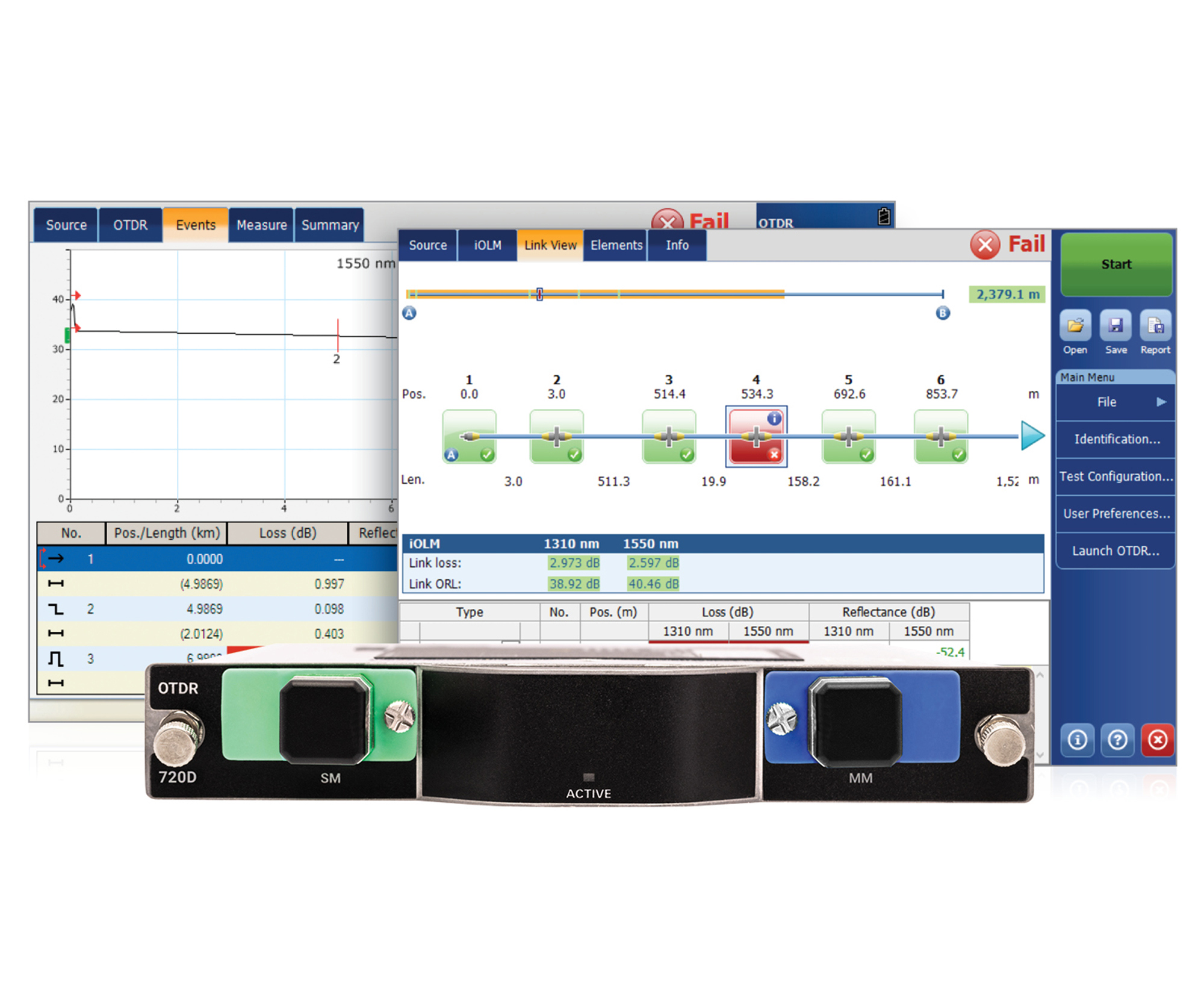

The FTBx-720D is an OTDR that is best suited for most typical short and access networks. It can perform both singlemode and multimode testing.

The FTBx-720D is designed for fronthaul/backhaul applications (FTTA, DAS, RRH, small cells), Tier-2 certification in data centers, enterprise and access networks, PON characterization and more.

The FTBx-720D test module is hosted within EXFO’s compact modular platforms that can also be equipped with other testing capabilities such as Ethernet, CPRI or copper testing to provide a complete test solution for FTTA contractors.
